What Is an OLED Display? Meaning, Technology, Benefits and Uses

An OLED display is a screen in which individual pixels use organic light-emitting materials to produce their own light. Unlike an LCD, OLED does not require a separate backlight. Each pixel can control its brightness independently or switch off, producing deep blacks, strong contrast, fast response, wide viewing angles, and thinner display structures.

OLED technology is used in televisions, smartphones, laptops, automotive displays, digital signage, and interactive commercial installations. It also enables specialized formats such as flexible displays and transparent displays.

However, OLED is not automatically the best choice for every project. LCD may be more practical for some continuously bright information screens, while direct-view LED may be better for very large outdoor installations. Whether OLED is suitable depends on the viewing environment, screen size, operating hours, content type, brightness requirements, maintenance needs, and budget.

What Does OLED Stand For?

OLED stands for Organic Light-Emitting Diode. “Organic” refers to the carbon-based compounds that emit light when an electric current passes through them.

Unlike LCD pixels, which rely on a separate backlight, OLED pixels produce their own light. This self-emissive design is the key to understanding both how OLED displays work and why they can deliver deep blacks, high contrast, and thin form factors.

How Does an OLED Display Work?

An OLED display contains millions of individually controlled pixels. Each pixel includes extremely thin organic materials placed between conductive layers and protected from moisture and oxygen.

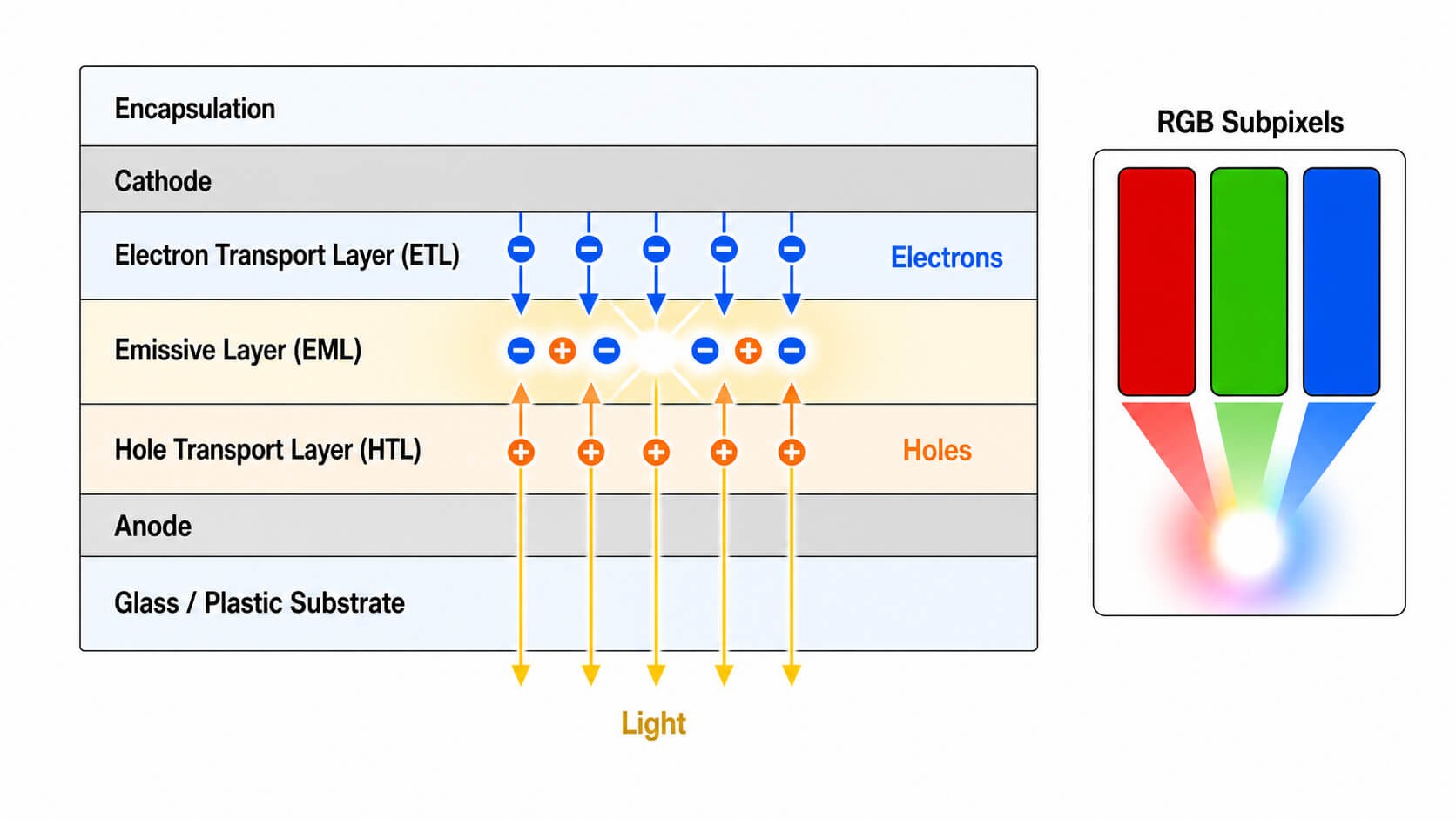

Basic OLED Display Structure

In a simplified bottom-emission OLED, the layers are arranged as follows:

1. Glass or Plastic Substrate: Supports the OLED pixel structure and provides the surface through which light exits.
2. Anode: Injects positively charged holes into the organic layers.
3. Hole Transport Layer (HTL): Moves holes from the anode toward the emissive layer.
4. Emissive Layer (EML): Produces light when electrons and holes recombine.
5. Electron Transport Layer (ETL): Moves electrons from the cathode toward the emissive layer.
6. Cathode: Injects electrons into the organic layers.
7. Encapsulation: Protects the moisture-sensitive organic materials from oxygen, humidity, and physical damage.

When electrical current reaches a pixel:

1. Electrical charges enter the organic materials.
2. The charges meet in the light-emitting layer.
3. The resulting energy is released as light.
4. The display adjusts the red, green, and blue subpixels to produce the required color and brightness.

Because every pixel produces and controls its own light, an OLED display can turn one pixel completely off while keeping a neighboring pixel bright. This pixel-level control creates true blacks, strong contrast, fast image response, and precise control over dark scenes.

The materials and manufacturing methods may differ across rigid, flexible, and transparent OLED displays, but the underlying principle remains the same: each pixel generates its own light.

Characteristic Features and Benefits of OLED Displays

The main characteristic features of an OLED display result from its self-emissive architecture.

Strong contrast

An OLED pixel can switch off independently. In a conventional opaque OLED, this produces very dark blacks and clear separation between bright and dark areas.

Fast response

OLED pixels change state without waiting for liquid crystals to rotate. This supports smooth video and responsive interactive content. Total system latency, however, also depends on the controller, software, input source, and refresh rate.

Wide viewing angles

OLED displays generally maintain more consistent color and contrast when viewed from different positions. This is valuable in retail stores, museums, showrooms, and other shared spaces.

Thin and adaptable construction

Without a backlight, OLED panels can use a simpler and thinner structure. Depending on the materials and product design, OLED technology can support curved, flexible, or transparent formats.

Content-dependent power use

A potential benefit of OLED display technology is that dark content can use less pixel power than bright, full-screen content. This does not mean every OLED consumes less energy than every LCD. Actual consumption depends on brightness, content, panel size, electronics, and operating time.

Limitations to consider

OLED also has practical limitations:

• Organic materials age over time.
• Long-term static graphics may cause uneven pixel wear.
• Continuous high-brightness operation can affect power use and aging.
• OLED products may cost more than comparable LCD products.
• Available sizes and specifications depend on the panel supplier.
• Strong ambient light can reduce perceived contrast.
• Integrated panels may be more complicated to repair.

Actual performance varies between products. Brightness, power consumption, recommended operating conditions, image-retention protection, and warranty coverage should therefore be compared for the specific models under consideration.

Where Are OLED Displays Used?

OLED technology supports both consumer and commercial applications.

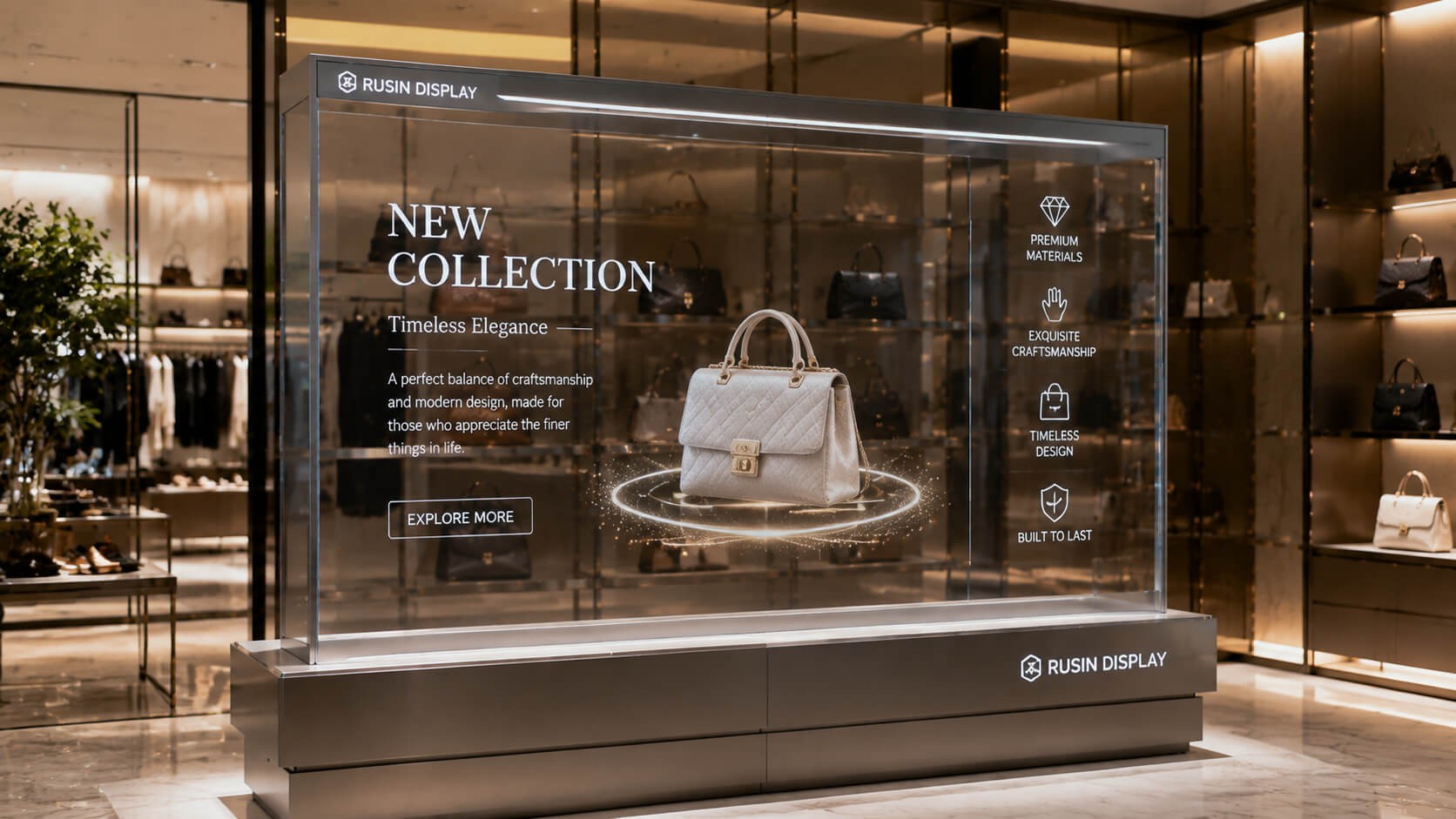

What is a transparent OLED display?

A transparent OLED display uses self-emissive pixels, transparent materials, and transmissive areas that allow viewers to see objects or spaces behind the panel. Illuminated pixels create digital content over the physical background.

Typical applications include:

• Retail showcases
• Museums and exhibitions
• Corporate showrooms
• Interior partitions
• Transportation information
• Interactive product demonstrations
• Spatial digital signage

Transparent OLED has an important visual limitation: inactive pixels reveal the background rather than producing the same black seen on an opaque OLED. Bright or visually complex backgrounds can therefore reduce readability.

How to Decide Whether OLED Is Right for a Project

OLED is a strong candidate when contrast, thin construction, wide viewing angles, design flexibility, or transparency is central to the project.

It may be less suitable when the priorities are the lowest purchase price, very high outdoor brightness, unrestricted display size, or continuous presentation of fixed high-brightness graphics.

Before purchasing, consider:

• Screen size and resolution
• Ambient light
• Viewing distance and angle
• Daily operating hours
• Static versus dynamic content
• Brightness and power consumption
• Touch and protective-glass requirements
• Mounting, ventilation, and cable routing
• Operating temperature and humidity
• Controller and signal interfaces
• Warranty and replacement process
• Technical support and spare parts

Evaluate the Complete Display System

A commercial display should not be evaluated by the OLED panel alone. The complete system may also include touch sensors, protective glass, a controller, a computer, power supplies, an enclosure, a cooling system, mounting hardware, cables, and software.

For larger or customized projects, a sample or paid pilot may be appropriate. It should use representative content and realistic operating conditions. Important factors include readability, reflections, touch response, heat, cable concealment, startup behavior, maintenance access, and image retention.

Possible warning signs include:

• Content is difficult to read against the intended background.
• Maximum brightness is required at all times.
• Static graphics cannot be rotated or managed.
• The enclosure cannot provide adequate ventilation.
• Cables or control boxes cannot be safely concealed and serviced.
• Replacement parts or technical support are not clearly available.
• Compliance documents do not match the complete product configuration.

Safety and compliance

Commercial installations must follow the electrical, structural, accessibility, environmental, advertising, privacy, and consumer-protection requirements of the destination market.

IEC 62368-1 provides a safety framework for audio/video and information technology equipment, but citing the standard does not prove that a particular product complies. Request applicable test reports, declarations, model identifiers, and document scopes.

If a system includes cameras, microphones, audience analytics, or personalized content, provide appropriate notice, minimize data collection, and review local privacy requirements. Qualified installers should handle work involving electrical, structural, or public-safety risks.

FAQ

How long does an OLED display last?

There is no universal lifespan. Longevity depends on materials, brightness, temperature, content, duty cycle, protection functions, and the manufacturer’s test method. Use the specifications and warranty for the exact model under consideration.

Can OLED suffer from burn-in?

Uneven pixel aging can occur when static elements remain on screen for long periods. Content rotation, brightness management, scheduled rest periods, and pixel-protection functions can reduce—but not universally eliminate—the risk.

Is OLED more energy-efficient than LCD?

It depends on the content and operating conditions. OLED power changes with the number and brightness of active pixels, while LCD uses a backlight. Compare measured consumption using the expected brightness and content mix.

Can an OLED display be transparent?

Yes. Transparent OLED uses clear materials and transmissive areas to preserve visibility through the panel. Its practical performance depends on the background, lighting, viewing position, and installation design.
