Why Display Technology Matters in Modern Healthcare

In modern healthcare, displays do more than present information. They directly influence how clinicians interpret diagnostic data under time pressure.

Image clarity affects decision speed. Luminance stability affects diagnostic consistency. When visual information is unclear, interpretation risk increases.

Medical displays are structured visual systems that support clinical accuracy from imaging rooms to remote consultation platforms.

How LCD Became the Foundation of Medical Display Systems

Display technology in healthcare evolved through functional necessity.

CRT Era

CRT monitors were used in early radiology systems. They were bulky, prone to distortion, and limited in resolution. Geometric instability affected image precision.

The Rise of LCD

LCD panels replaced CRT systems in the early 2000s. Their thin structure reduced space usage and power consumption. Most importantly, LCD panels eliminated scanning distortion and improved image stability.

Stable image structure reduces visual fatigue during long diagnostic sessions.

The Development of Medical-Grade LCD

Standard LCD performance was not sufficient for clinical diagnostics. Medical-grade LCD displays introduced DICOM Part 14 calibration to standardize grayscale response curves.

Controlled luminance ensures subtle tissue variations remain visible. Without calibrated grayscale performance, fine diagnostic details may be lost.

Medical displays also require controlled backlight uniformity. Uneven backlight distribution causes grayscale inconsistency. Uniform luminance ensures image quality remains stable across the entire panel.

Technology Integration and Structural Enhancements

Modern medical LCD systems integrate environmental and structural adaptations:

• IPS and FFS panels maintain color consistency at wide viewing angles
• High brightness compensates for strong surgical lighting
• Anti-glare coatings reduce reflection under overhead illumination
• Projected Capacitive Touch supports glove interaction
• Antimicrobial coatings assist infection control
• Sealed enclosures with IP54 or IP65 protection prevent fluid ingress

Each feature addresses a real clinical condition. Operating rooms use high-intensity lighting, so higher brightness prevents contrast washout during procedures.

Where Medical Displays Are Used — From Imaging to Patient Monitoring

Medical displays operate under very different stress conditions. The installation environment determines structural priorities.

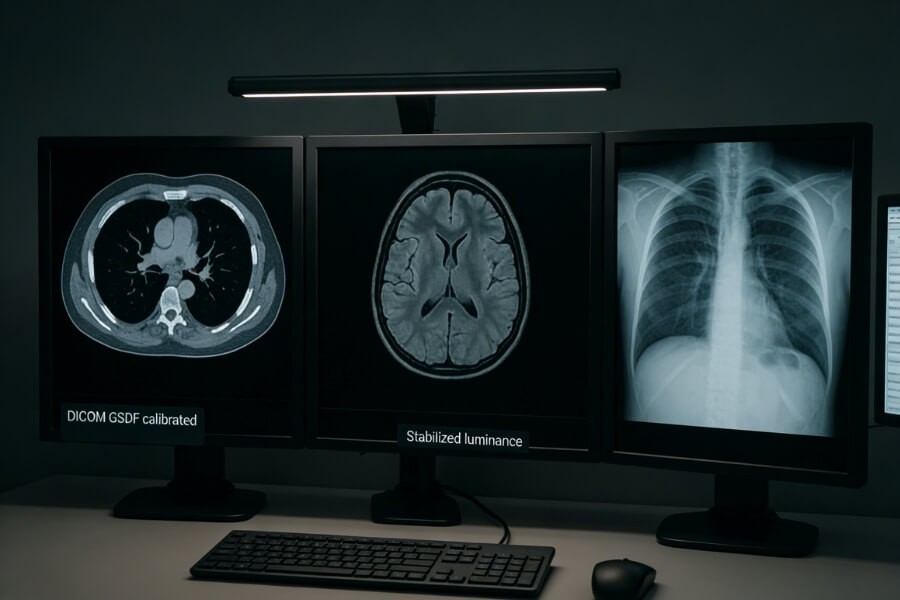

Displays for Diagnostic Imaging and Radiology

Key Equipment

• Ultrasound systems
• MRI and CT scanners
• Digital Radiography systems
• Endoscopy systems
• Pathology workstations

High resolution, often 4K or higher, preserves anatomical detail. Pixel density determines the visibility of small lesions. Higher density allows clearer differentiation of tissue boundaries.

Grayscale consistency is critical. Stable backlight control and calibrated luminance curves maintain diagnostic reliability. Panel uniformity prevents edge dimming and interpretation errors.

Displays in Surgical and Interventional Environments

Key Equipment

• Surgical visualization monitors
• Robotic-assisted systems
• Navigation consoles
• Anesthesia workstations

Low latency ensures real-time image guidance. Even minor delay can affect instrument precision.

High brightness compensates for strong operating room lighting. Controlled contrast stability prevents image fading under intense ambient light.

Thermal management supports long-term luminance stability during extended surgical procedures.

Displays in Patient Monitoring and Critical Care

Key Equipment

• Bedside monitors
• Central monitoring stations
• Ventilators
• Infusion pumps
• Defibrillators

Continuous 24/7 operation requires stable luminance control. Over time, panel degradation can reduce brightness. Medical-grade components minimize luminance drift.

Wide viewing angles allow multiple clinicians to observe the same waveform without color shift. Clear waveform contrast supports rapid parameter recognition in urgent situations.

Displays in Laboratory and Pharmacy Equipment

Key Equipment

• Blood analyzers
• DNA sequencing systems
• Sample management terminals

Accurate color reproduction supports specimen differentiation. Calibrated color space coverage prevents misinterpretation in stained sample analysis.

Optical bonding reduces internal reflection. Reduced reflection improves readability in bright laboratory environments.

Digital Information Displays in Hospital Environments

Application Areas

• Hospital lobbies
• Waiting areas
• Nurse stations
• Patient room entrances
• Digital navigation systems

High operational stability and centralized control are essential. Displays must support continuous information updates and synchronized network communication.

Freestanding and wall-mounted systems integrate with hospital information platforms. Flexible installation supports spatial optimization and improves patient guidance efficiency.

Key Technical Factors That Influence Medical Display Performance

Selecting a medical display requires understanding how each parameter affects clinical performance.

Resolution and Pixel Density

Resolution defines detail capacity. Higher pixel density improves small object visibility, which is critical for lesion detection.

Brightness and Contrast

Brightness above 1000 cd/m² ensures visibility in bright environments. Strong contrast enhances image layering and structural clarity.

Contrast stability under ambient light prevents visual flattening of medical images.

Color Accuracy and Grayscale Performance

DICOM grayscale compliance ensures predictable luminance response. Color-critical applications require calibrated color space coverage.

Accurate luminance reproduction prevents loss of diagnostic information.

Touch Technology

• Projected Capacitive Touch supports glove interaction and multi-touch input
• Resistive Touch activates with most objects but reduces optical clarity

Touch selection depends on hygiene requirements and optical clarity priorities.

Environmental Adaptation

IP65 protection prevents dust and liquid ingress during frequent cleaning cycles. Scratch-resistant glass supports long-term durability.

Wide temperature tolerance ensures stable performance across varying clinical environments.

Compliance and Certification

IEC 60601-1 ensures electrical safety in patient-connected environments. Regional approvals such as FDA 510(k) or CE-MDR may be required for regulatory compliance.

Compliance protects operational continuity and patient safety.

How Medical OEMs Should Evaluate Display Solutions

Display integration affects regulatory stability and long-term device viability.

Define the Operating Environment

Surgical rooms require high brightness and anti-reflection surfaces. Mobile devices require low power consumption and compact structures.

Environmental assessment determines structural priorities.

Identify Image Quality Priorities

Grayscale diagnostic systems require DICOM calibration. Color-intensive systems require uniform color reproduction and calibration stability.

Select the Appropriate Interaction Method

If clinicians wear gloves, Projected Capacitive Touch with glove optimization is required. Interaction reliability supports workflow speed.

Plan for Product Lifecycle Stability

Medical device certification is resource-intensive. Display revision changes may trigger re-certification.

Long-term supply continuity and strict revision control reduce regulatory risk.

Assess Customization Capabilities

Optical bonding reduces reflection and improves contrast stability. Interface adaptation ensures system compatibility. Structural reinforcement supports vibration resistance.

A display partner must understand system integration, not just panel supply.

The Future of Medical Displays — AI, Transparency, and Integrated Systems

Medical visualization continues to evolve toward intelligent integration.

AI-Enhanced Diagnostic Displays

AI-assisted overlays can mark suspicious regions in real time. Integrated analysis supports faster interpretation and improves diagnostic efficiency.

Telemedicine and Flexible Displays

Portable medical devices require low-power panels and stable readability under variable lighting. Flexible OLED solutions may support wearable integration.

Display efficiency directly supports mobility.

Integrated Surgical Video Walls

Modern operating rooms integrate multiple signal sources. Modular LCD or fine-pitch LED systems centralize visualization for coordinated decision-making.

Integrated visualization improves procedural collaboration.

Transparent Display and Augmented Reality

Transparent OLED enables layered visual information without blocking physical space. Surgical navigation overlays may project anatomical guidance directly into the field of vision.

Layered visualization enhances procedural clarity.

Micro-LED Advancements

Micro-LED offers high brightness, long lifespan, and modular scalability. It may define the next generation of large-format medical visualization systems.

FAQ

Q1: What is the primary difference between medical-grade LCD and commercial displays?

Medical-grade LCD displays are calibrated to DICOM standards for consistent grayscale performance. They use higher-quality components, support 24/7 operation, and are designed for stable luminance and long-term reliability in clinical environments.

Q2: What is DICOM calibration and why is it important?

DICOM Part 14 standardizes grayscale response curves. Calibration ensures accurate luminance steps and consistent image reproduction, which is critical for detecting subtle variations in diagnostic imaging.

Q3: How are touchscreens operated in sterile environments?

Medical displays commonly use Projected Capacitive Touch optimized for glove interaction. This allows precise control while wearing latex or nitrile gloves, maintaining sterile workflow without sacrificing responsiveness.

Q4: What certifications are essential for medical displays?

IEC 60601-1 ensures electrical safety in patient environments. IP ratings such as IP65 protect against dust and cleaning fluids. Regulatory approvals like FDA 510(k) or CE-MDR may be required for market access.

Q5: What are the practical applications of Transparent OLED in healthcare?

Transparent OLED supports surgical navigation overlays, smart equipment interfaces, immersive medical education systems, and pharmacy visualization cabinets. It enables layered information display without blocking physical visibility.
