On March 26, 2026, RusinDisplay announced that 100 units of 55-inch 4K freestanding digital signage were ready for shipment to Italy. The project brought together display assembly, touch integration, factory testing, and reinforced packaging for a partner’s commercial display deployment.
- Project scale: 100 units prepared for deployment in Italy.
- Core configuration: 55-inch 4K S-IPS displays, 10-point capacitive touch, and automatic ambient-light adjustment.
- Testing and delivery: 72-hour burn-in testing, honeycomb boxes with wooden-case reinforcement, and a three-year whole-unit warranty.
Display Design for Commercial Spaces
Freestanding signage needs to remain visible as visitors approach from different directions. The S-IPS panel’s specified 178° horizontal and vertical viewing angles support this use, while its 4K resolution provides detail for product imagery, promotional graphics, and on-screen information.
An integrated ambient light sensor adjusts screen brightness as surrounding light levels change. This helps balance visibility in brighter areas with viewing comfort in dimmer interiors. Placement near glazing also requires attention to reflections and direct sunlight.
The 10-point capacitive touch system allows visitors to interact with compatible menus and applications. The freestanding enclosure provides an installation format that does not require wall mounting, making it suitable for reception areas, retail interiors, and exhibition spaces.
Core Technical Specifications
| Module | Core Specification | Application Detail |
| Display panel | 55-inch 4K S-IPS | 3840 × 2160 resolution; 178° horizontal and vertical viewing angles |
| Brightness | 250–800 cd/m² | Ambient light sensor for automatic brightness adjustment |
| Touch interface | 10-point capacitive multi-touch | Direct on-screen interaction; tempered protective glass |
| Android platform | Quad-core Cortex-A55, 1.8 GHz; Mali-G52 2EE GPU | Android 11; 2 GB DDR4 RAM and 16 GB storage, with configuration options |
| Connectivity | Ethernet, Wi-Fi, USB, and HDMI | Connections for network access, peripherals, and media integration |
| Housing | Anodized alloy, freestanding structure | Floor-standing installation without wall mounting |
Android and Windows configurations are available, allowing the system to be selected around the partner’s playback software or interactive application. For the Android option, RAM can be configured to 4 GB, with 8 GB, 32 GB, and 64 GB storage alternatives.
CMS integration depends on the selected operating system, player application, and content requirements. Matching these elements helps establish the playback and interaction functions needed for deployment.
72-Hour Burn-In and Functional Testing

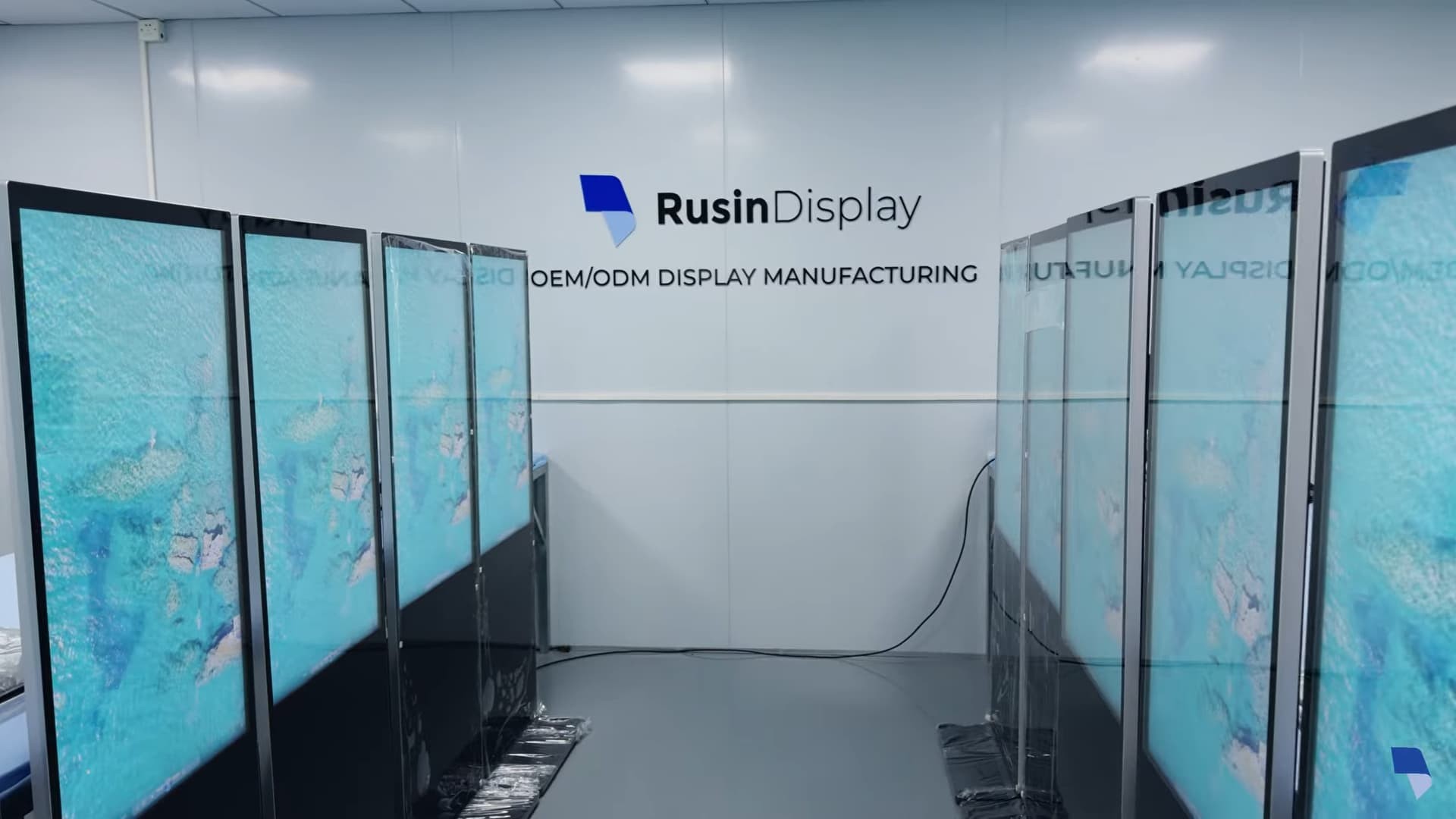

Before shipment, the units underwent 72 hours of continuous powered-on burn-in testing. This extended operating period helps identify early operating faults that may not appear during a brief power-on check.
Display inspection used full-screen red, green, blue, white, and black test patterns to check for bright or dark pixel defects and visible display abnormalities. These uniform backgrounds make defects easier to identify than ordinary promotional content.
Touch testing checked touch registration and multi-touch response. Together, these checks covered sustained operation, displayed image quality, and user input before the units moved to final packaging.
Reinforced Packaging for International Transport

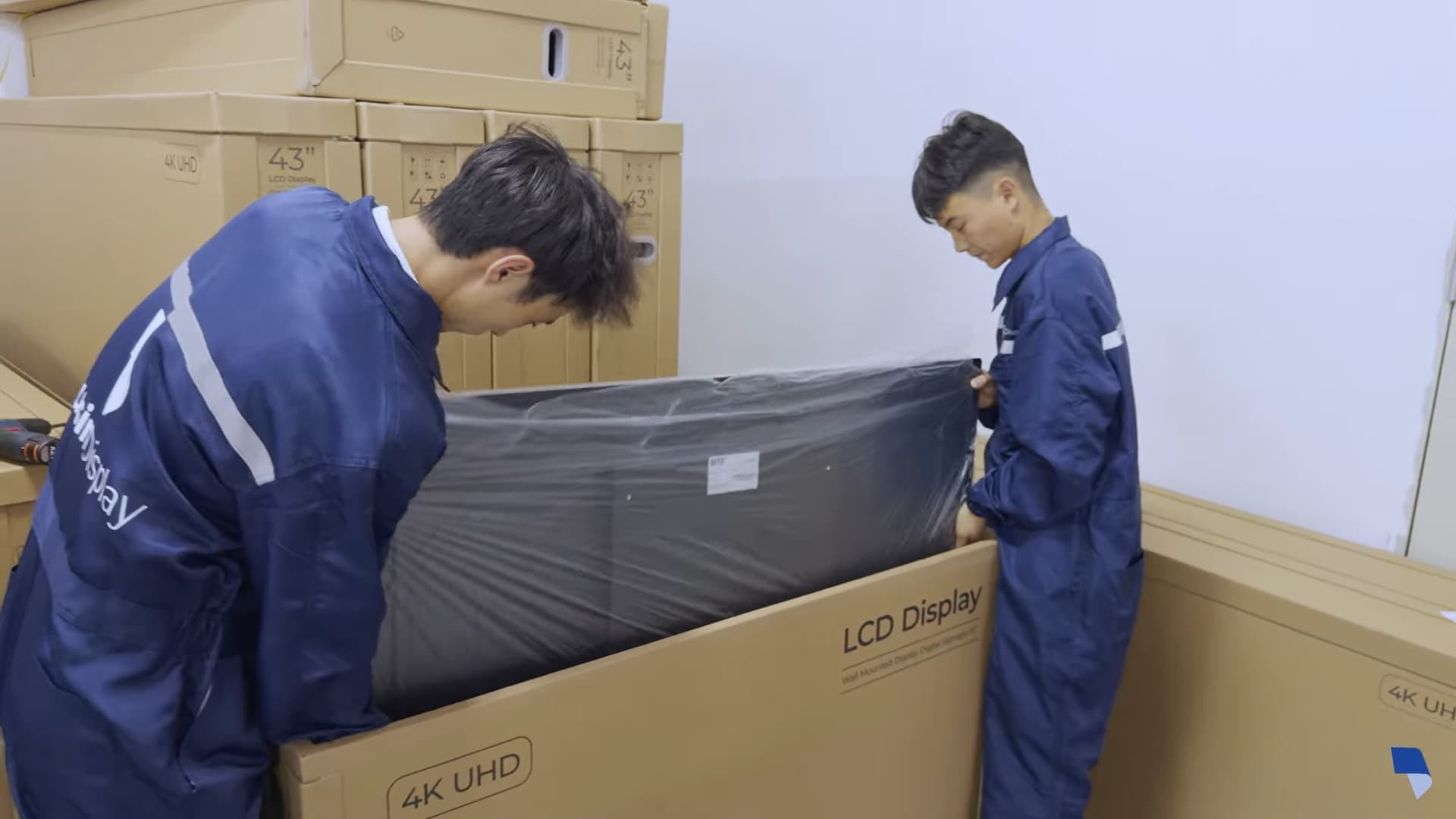

The units were packed in honeycomb boxes with wooden-case reinforcement for shipment to Italy. The inner packaging protects the display surfaces, while the rigid outer structure provides additional protection during transport and handling.
For this 100-unit order, packaging formed part of the delivery process alongside assembly and inspection, preparing the finished displays for the journey from the factory to the partner.
European Compliance and Three-Year Warranty
The product’s compliance coverage includes CE requirements for electromagnetic compatibility and low-voltage electrical safety (EMC and LVD), together with RoHS, REACH, and POPs requirements.
The Italy order is backed by a three-year whole-unit warranty, providing a defined warranty period as the displays move into commercial use.
For your next digital signage project, contact RusinDisplay or email info@rusindisplay.com to discuss display specifications, system configuration, and batch supply requirements.
