Size
30 inch
Resolution
768*1366
Transparency
43%
Capacitive touch
Optional
Product introduction

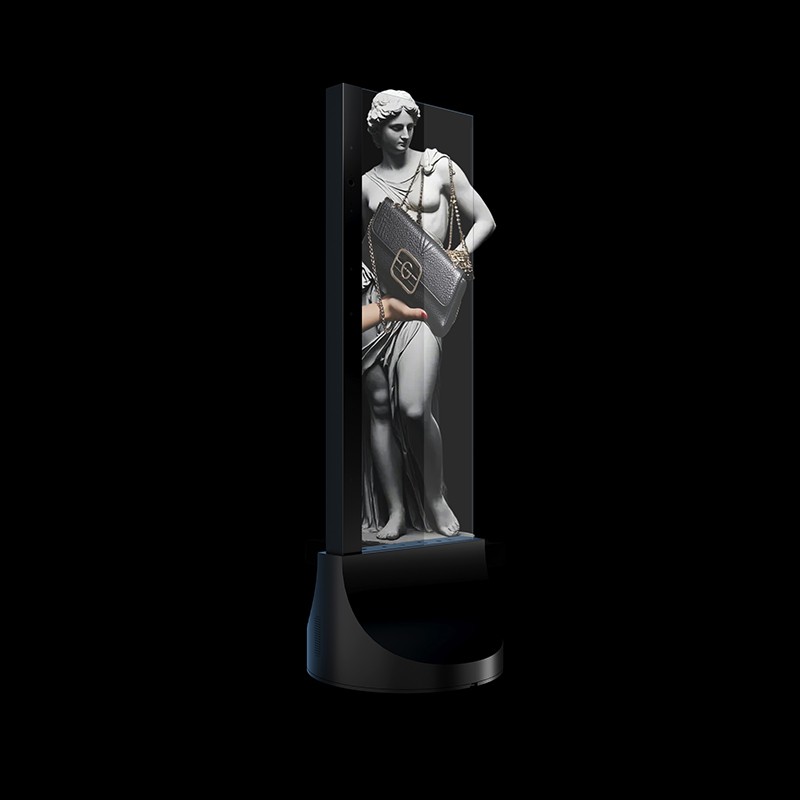

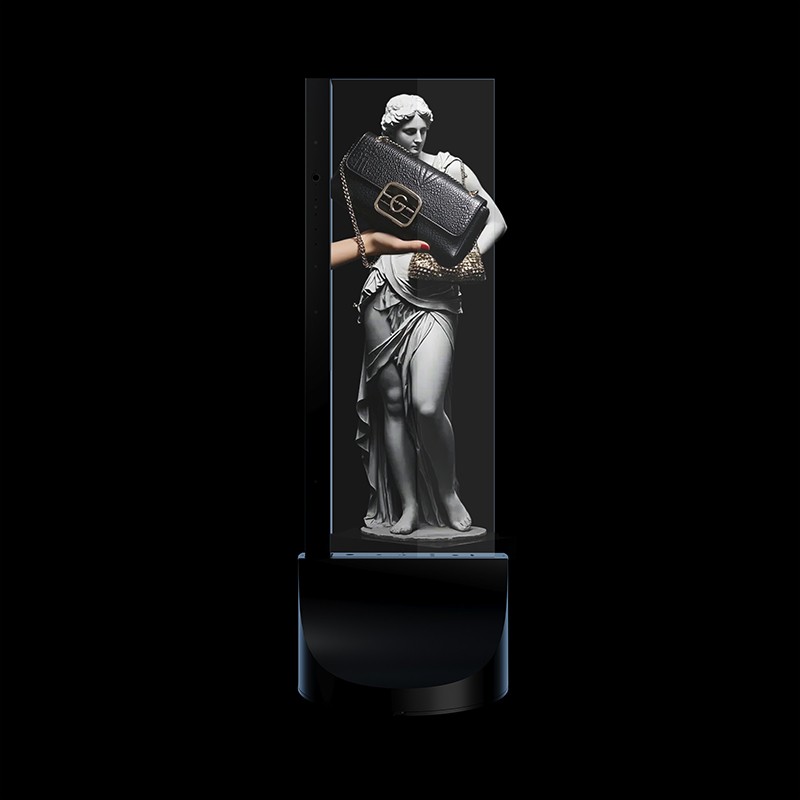

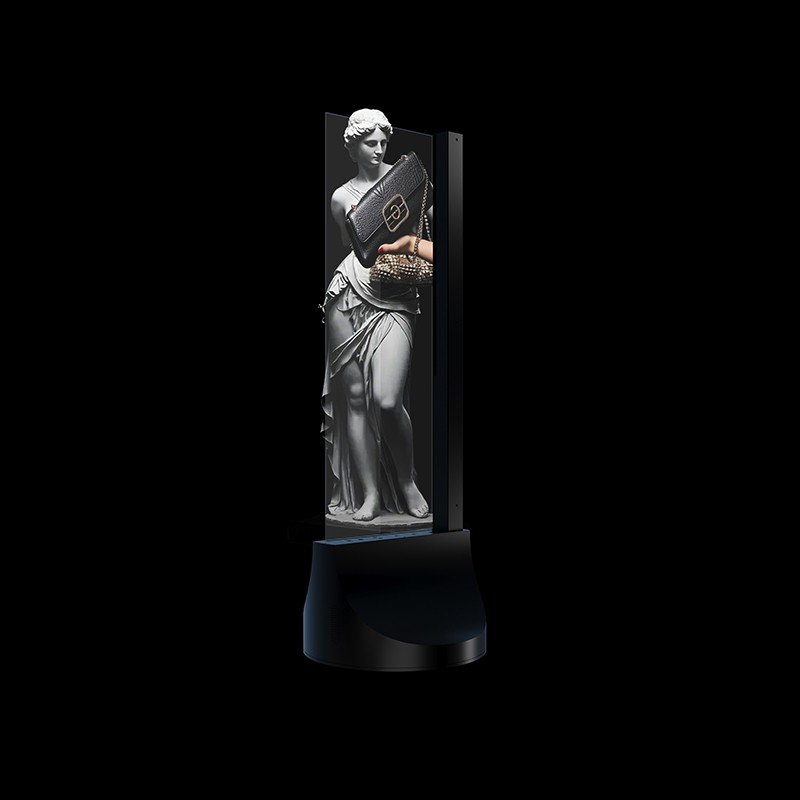

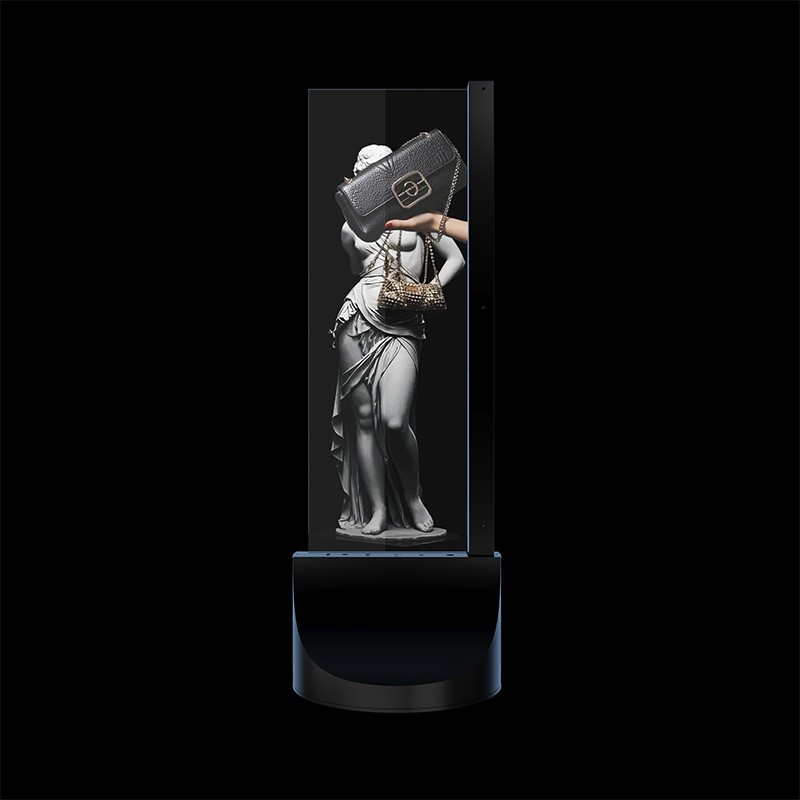

The R-R30 is a 30-inch transparent OLED display with a robotic base, combining high-definition transparent visuals with autonomous mobility, delivering a futuristic digital interaction solution.
Self-emissive OLED Screen
Offers vivid colors, ultra-high contrast, and deep blacks, ensuring an outstanding visual experience.
Intelligent Navigation System
Supports automatic route cruise mode and can adapt to various scenarios.
Comprehensive Obstacle Avoidance
Equipped with intelligent sensing and automatic rerouting for smooth and safe operation.
Seamless Human-Machine Interaction
Features capacitive touch for intuitive and responsive user engagement.
AI Digital Human Integration
Supports third-party digital human systems, enabling precise positioning and interactive explanations for an enhanced tech-driven experience.
Automatic Charging System
Powered by a lithium iron phosphate (LiFePO4) battery, ensuring safety and reliability with auto-return-to-charging dock functionality when battery levels are low.
Specification parameters
Resolution
768 x 1366
Aspect Ratio
9:16
Screen Size
30 inches
Luminance
600/200 cd/m² (Center 1 point, Typ.)
Pixel Pitch
0.630 mm x 0.630 mm
Viewing Angle
178°H,V
Color Gamut
90%
Color Depth
10bit (R), 1.07 billion colors
Lifetime
30,000 hours
Glass Type
6mm Tempered Glass
Touch Technology
Capacitive Touch
Touch Points Supported
10
Default OS
Android 11
CPU
Quad-core Cortex-A55, up to 1.8GHz
Memory (RAM)
8GB
Storage (ROM)
64GB
Battery Voltage
28.4V (7A)
Battery Capacity
25.6V, 25Ah
Battery Life
≥10 hours
Charging Method
Auto-recharge when low or manual return.
Charging Time
Approx. 8 hours (4A) / 4 hours (7A)
Battery Lifespan
Over 2000 charge-discharge cycles
Optimum storage temperature
5°C to 35°C
Operating Temperature
0°C ~ 45°C
Humidity
10% ~ 90% RH (non-condensing)
Total Dimensions

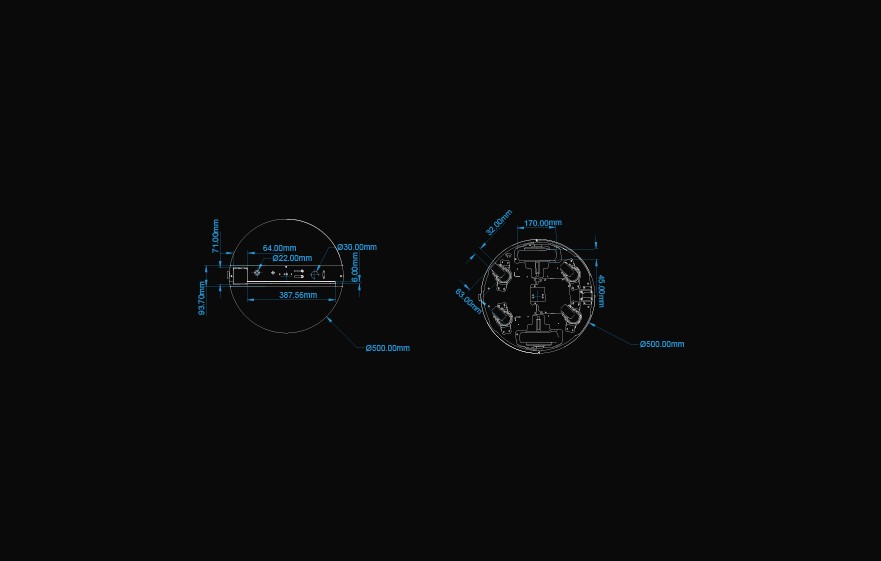

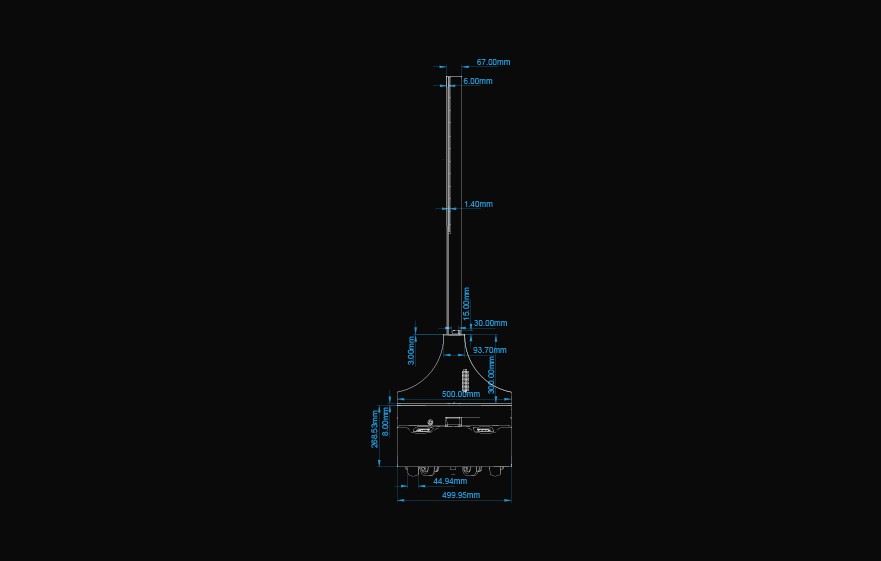

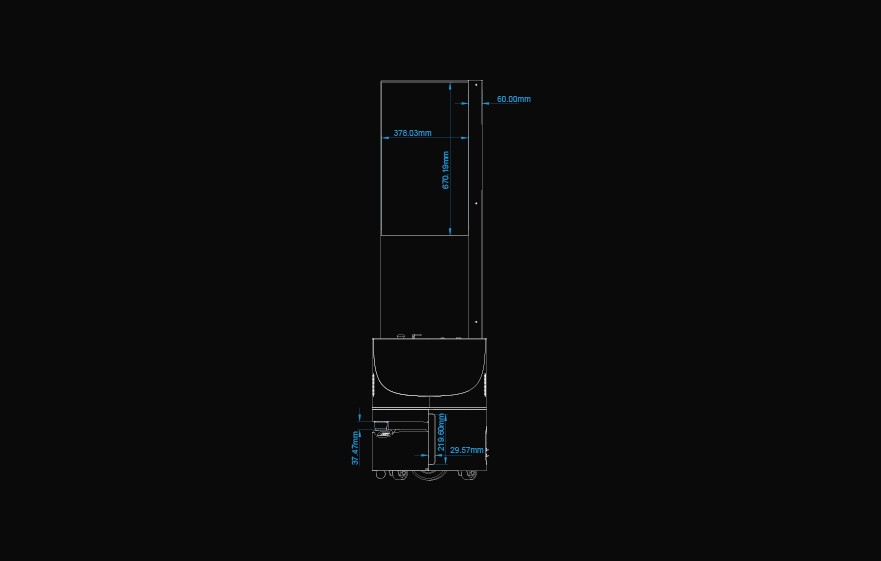

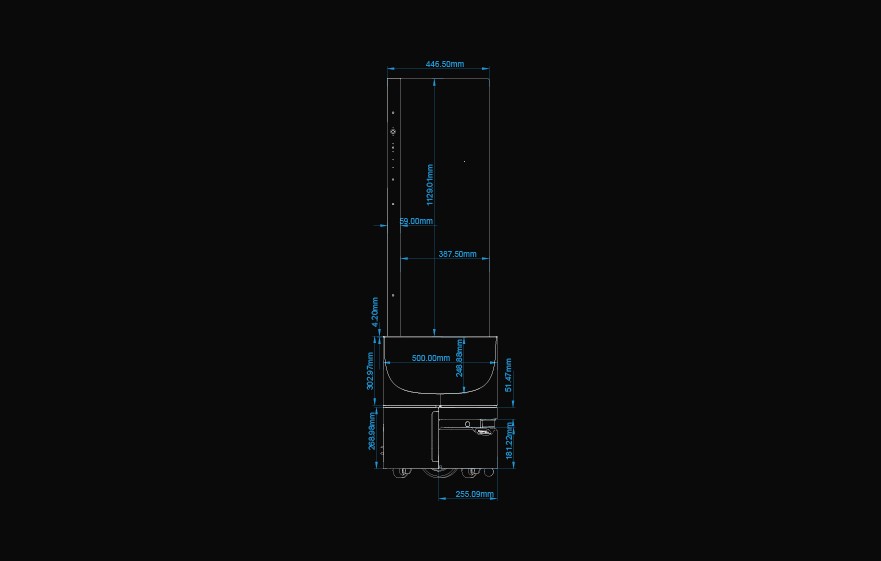

See Dimensional Drawings
Screen Dimensions
387 mm x 676 mm
Weight
TBD
