Rusin Display

Rusin Display 55Y
R-D55-Y
Size
55 Inch
Resolution
1920*1080
Transparency
43%
Capacitive touch
Optional
Product introduction
Specification parameters
Structure size diagram
Recommended
Product introduction
The R-D55-Y is a 55-inch innovative desktop transparent OLED display with exceptional visual performance:
Superior Image Quality
High contrast technology ensures sharp and vibrant visuals across various lighting conditions.
Dynamic Display
High brightness and rich color rendering deliver an immersive visual experience.
Interactive Design
Touch-enabled, allowing users to swipe, zoom, and select content, making it suitable for information displays, education, and entertainment.
Specification parameters
Resolution
1920 x 1080
Aspect Ratio
16:9
Screen Size
55 inches
Luminance
600/200 cd/m² (Center 1 point, Typ.)
Pixel Pitch
0.630 mm x 0.630 mm
Viewing Angle
178°H,V
Color Gamut
90%
Color Depth
10bit (R), 1.07 billion colors
Lifetime
30,000 hours
Glass Type
6mm Tempered Glass
Touch Technology
Capacitive Touch
Touch Points Supported
10
Display Interfaces
USB × 2 / HDMI × 2 / RS-232 IN × 1 / RS-232 OUT × 1 / DC × 1
Optimum storage temperature
5°C to 35°C
Operating Temperature
0°C ~ 45°C
Humidity
10% ~ 90% RH (non-condensing)
Total Dimensions
See Dimensional Drawings
Screen Dimensions
1222 mm x 699 mm
Weight
34 Kg (Actual weight may vary)

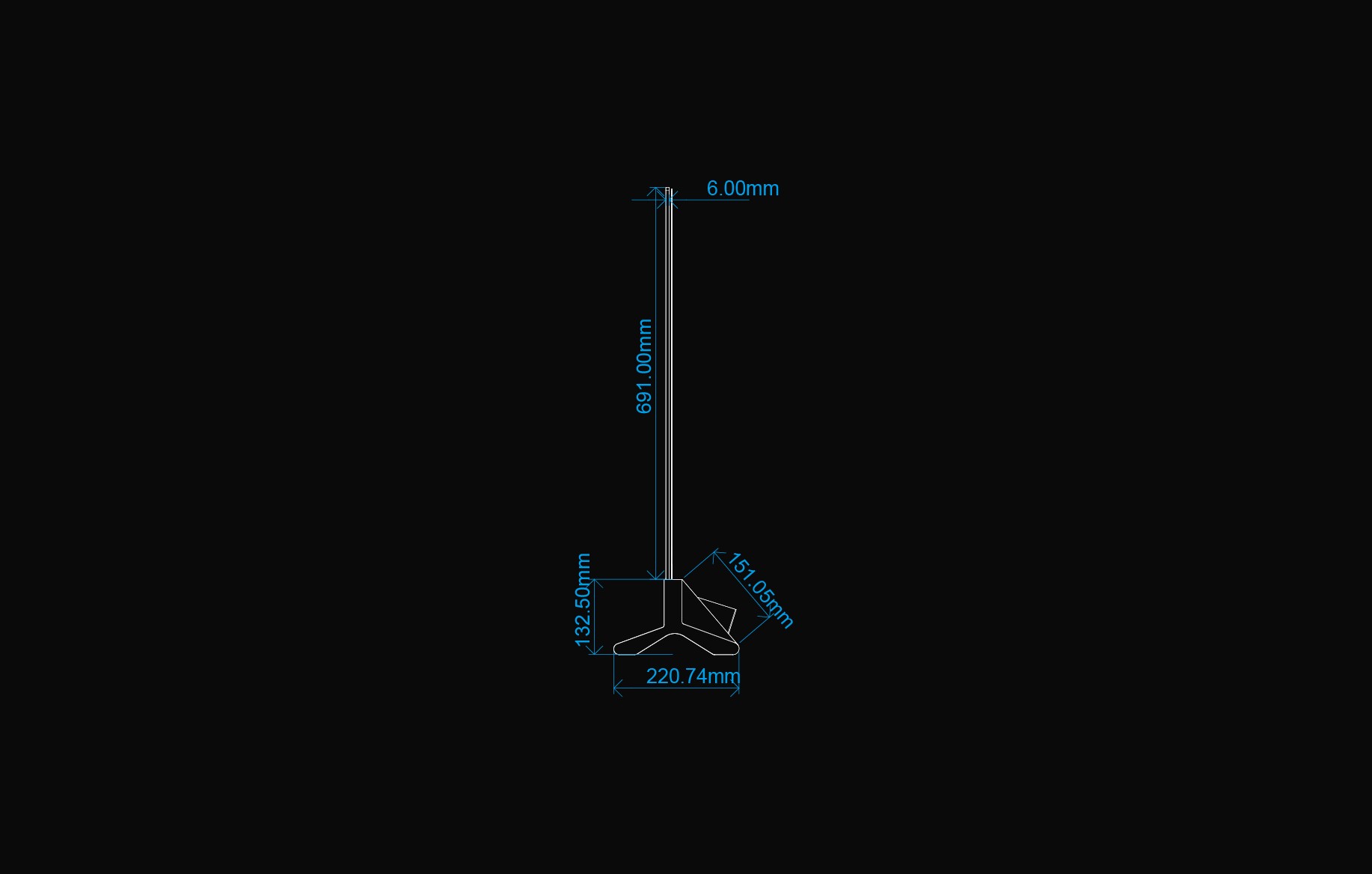

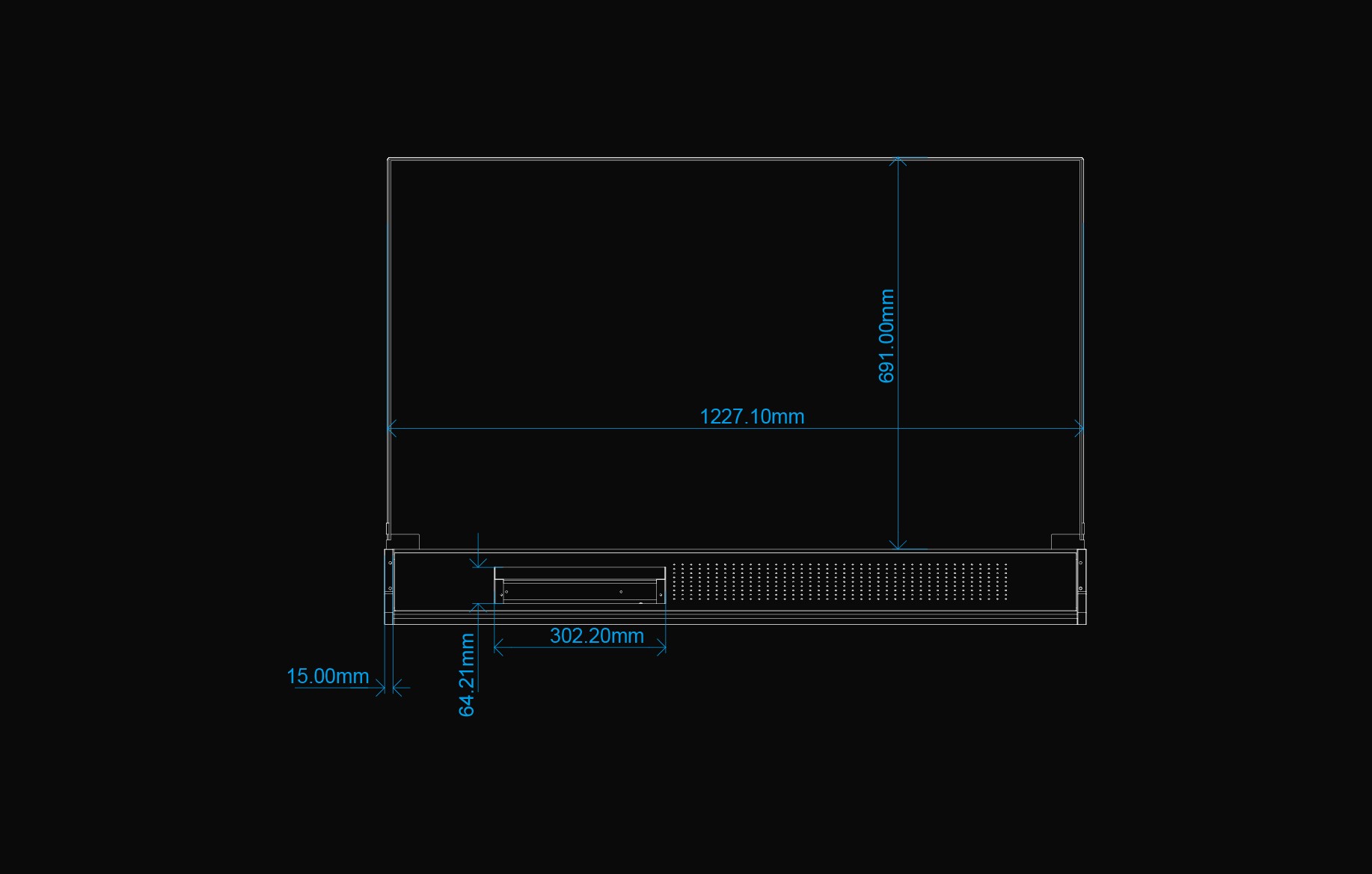

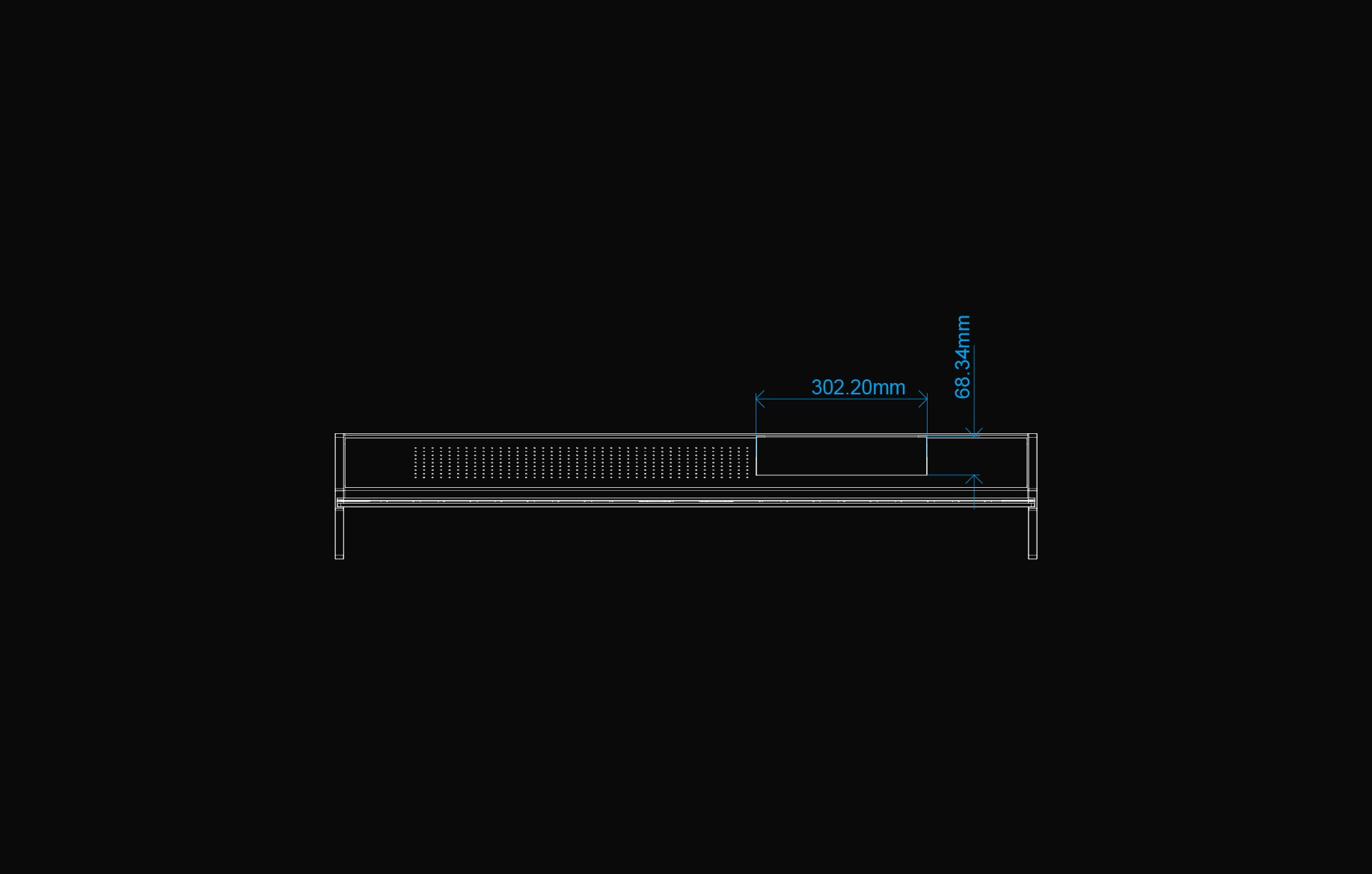

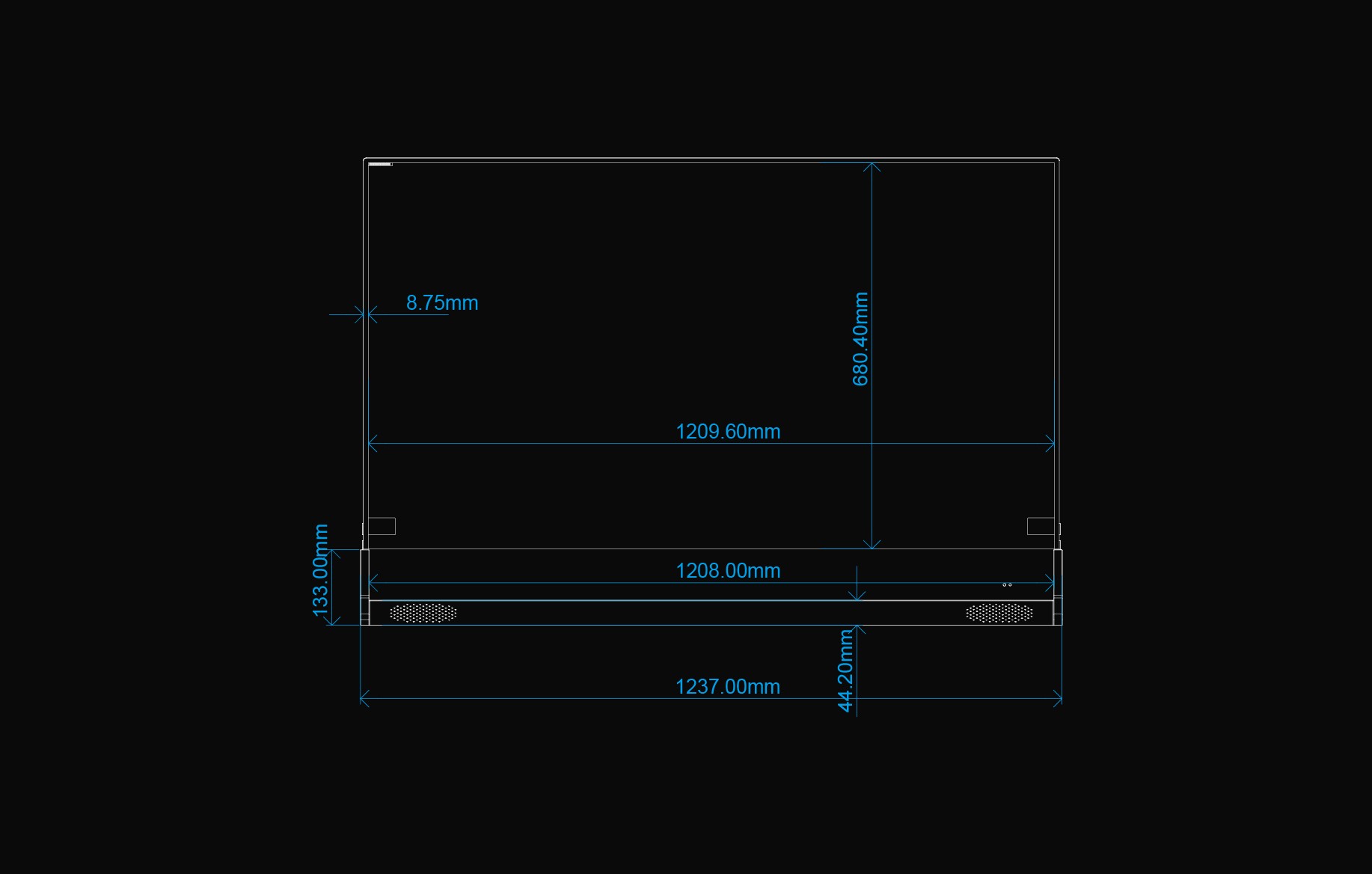

Structure size diagram
